Electric Pallet truck PTEL5Q Lithium Battery

Electric Pallet truck PTEL5Q Lithium Battery

$2,499.00

Manufacturer’s type designation Unit NL-EPT15Q
Distinguishing mark Drive Battery
Operator type Pedestrian
Load capacity/rated load lib 3300
Load center distance mm 600
wheelbase mm 1189
Tyres,chassis Tires Polyurethane(PU)
Tires size, front mm φ210×75
Tires size, rear mm φ80×70(φ80×93)
Tread, front b10(mm) -/430
Tread, rear b11(mm) 380/525

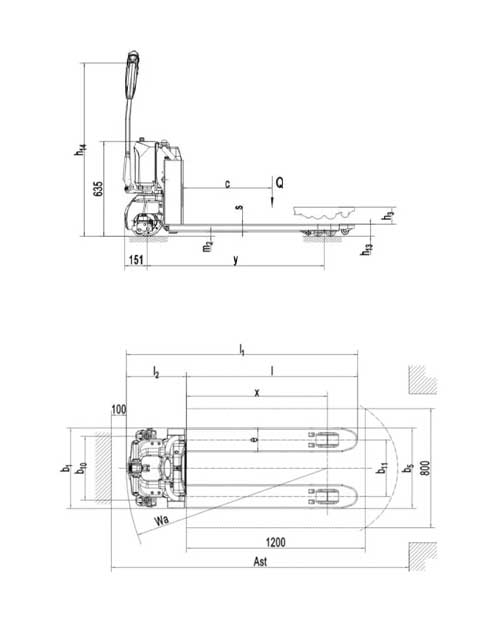

Dimensions Lift h3(mm) 115
Height of tiller in drive position min./max h14(mm) 655/1160
Height, lowered h13(mm) 80
Overall length l1(mm) 1543
Length to the face of forks 12(mm) 393
Overall width b1(mm) 540/685
Fork dimensions s/e/l(mm) 50/160/1150
Width Across forks b5(mm) 540/685
Ground clearance, the center of the wheelbase m2(mm) 30
Performance data Travel speed, laden/unladen km/h 4.3/4.9
Lift speed, laden/unladen m/s 0.015/0.022
Traction speed(lade/unlade) Km/h 4.6/4.2
Max. gradeability, laden/unladen % 0.05/0.026
Weight Self-weight lib 280/289
Electric-engine Drive motor rating S2 60min KW 0.75
Lift motor rating at S3 10% KW 0.50
Battery acc. to DIN43531/35/36 A, B, C, no No

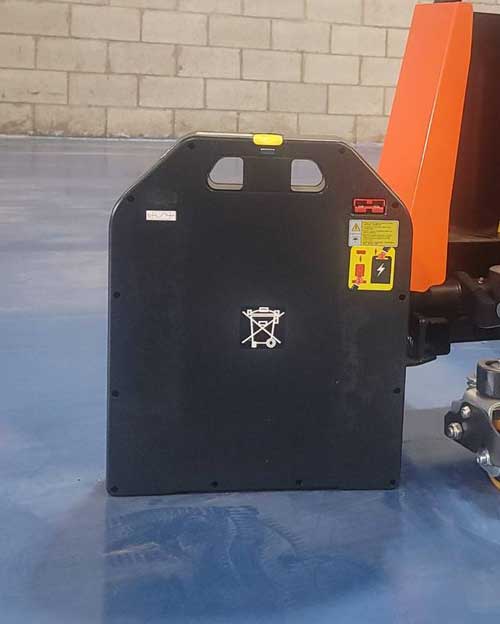

Battery voltage, nominal capacity K5 V/Ah 24/23(24/26)
Battery weight lib 14.33
Energy consumption acc. to VDI cycle kWh/h 0.25

  • This field is hidden when viewing the form
  • This field is for validation purposes and should be left unchanged.

Description

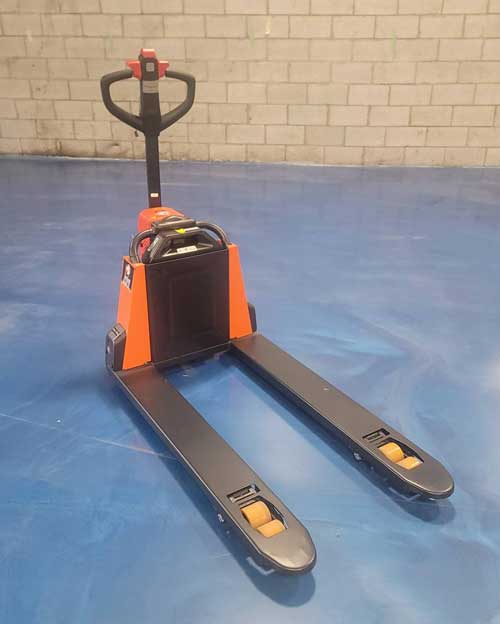

Lithium Battery Electric Pallet jack PTEL5Q

Model: NL-PTEL5Q -A

The new atom lithium-powered electric pallet truck is an edge series pallet jack designed under the current light and lithium industry trend. Its design is compact and intelligent, but its goal is to provide end users with manufacturing cost material handling solutions. Atom continues to provide functions and solutions commonly used for high-end electric pallet trucks, and uses the tail lower controller to drive, making it a perfect solution for retail, small warehouses, and intelligent lithium battery material handling, Fast and opportunistic charging without maintenance

Ergonomics & Intelligence

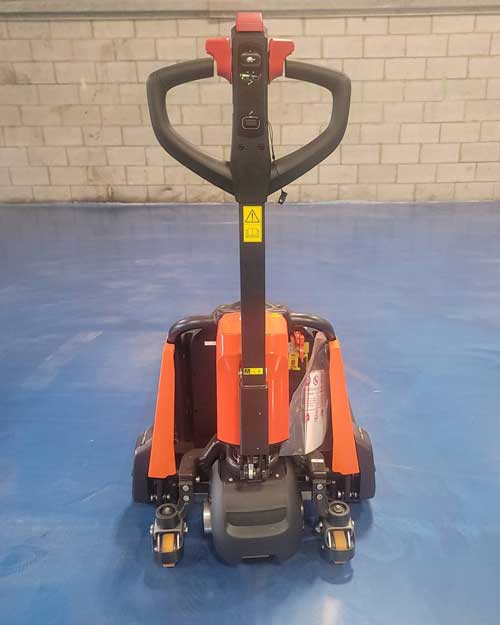

  • Rudder stock design the rudder stock integrates a variety of functions and is easy to carry and operate. The LCD displays the battery charging level and fault code, which makes the pallet truck condition on the glance clear and the pallet truck management safer. All switch buttons are integrated with the humanized touch position, which can be easily accessed by the operator
  • The structure of the pallet truck is more compact than traditional manual and semi-electric products and provides customers with a new solution that can replace manual and semi-electric products, thereby improving efficiency. More importantly, compared with the light weight of the traditional truck, it is caused by traction or lifting for the operator, and is low without sacrificing the strength of the frame. It is very suitable for the space requiring the weight of the pallet truck

Rating capability & robustness

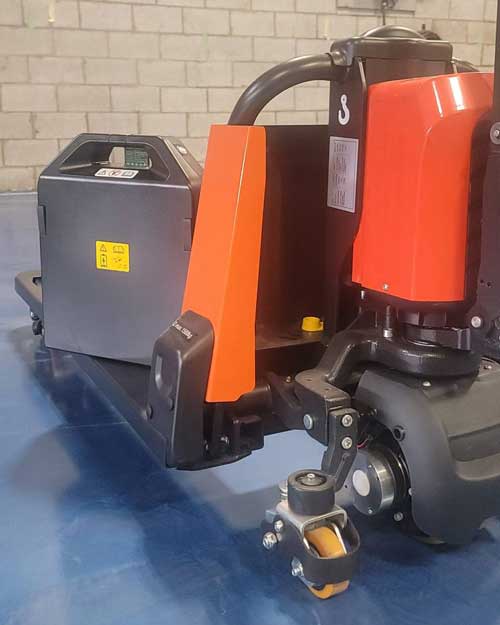

  • The frame of the PTEL5Q pallet truck is surrounded by steel covers making the pallet truck look different and also the protecting of comp
  • Forks with double-sided Chapereinforcements and at the fork tips significantly increase the strength and rigidity of the frame

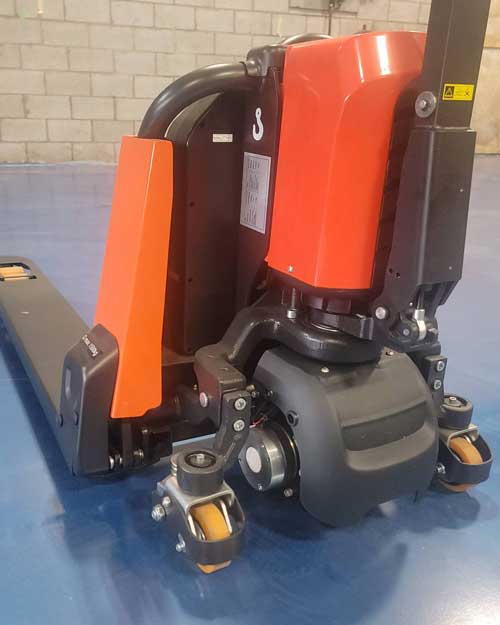

  • Using 24V DC permanent magnet motor technology, mute. 210 mm wheel diameter. strong ability to pas
